Contact-Free Decorative Marking with REA JET DOD 2.0
Some industrial applications require more than standard product coding. In high-end
manufacturing, the printed result must become part of the product design itself.
This application shows how REA JET DOD 2.0 can be adapted for special coding and marking requirements where graphic elements are applied directly onto three-
dimensional painted components with a clean, sharp and premium finish.
Application Overview

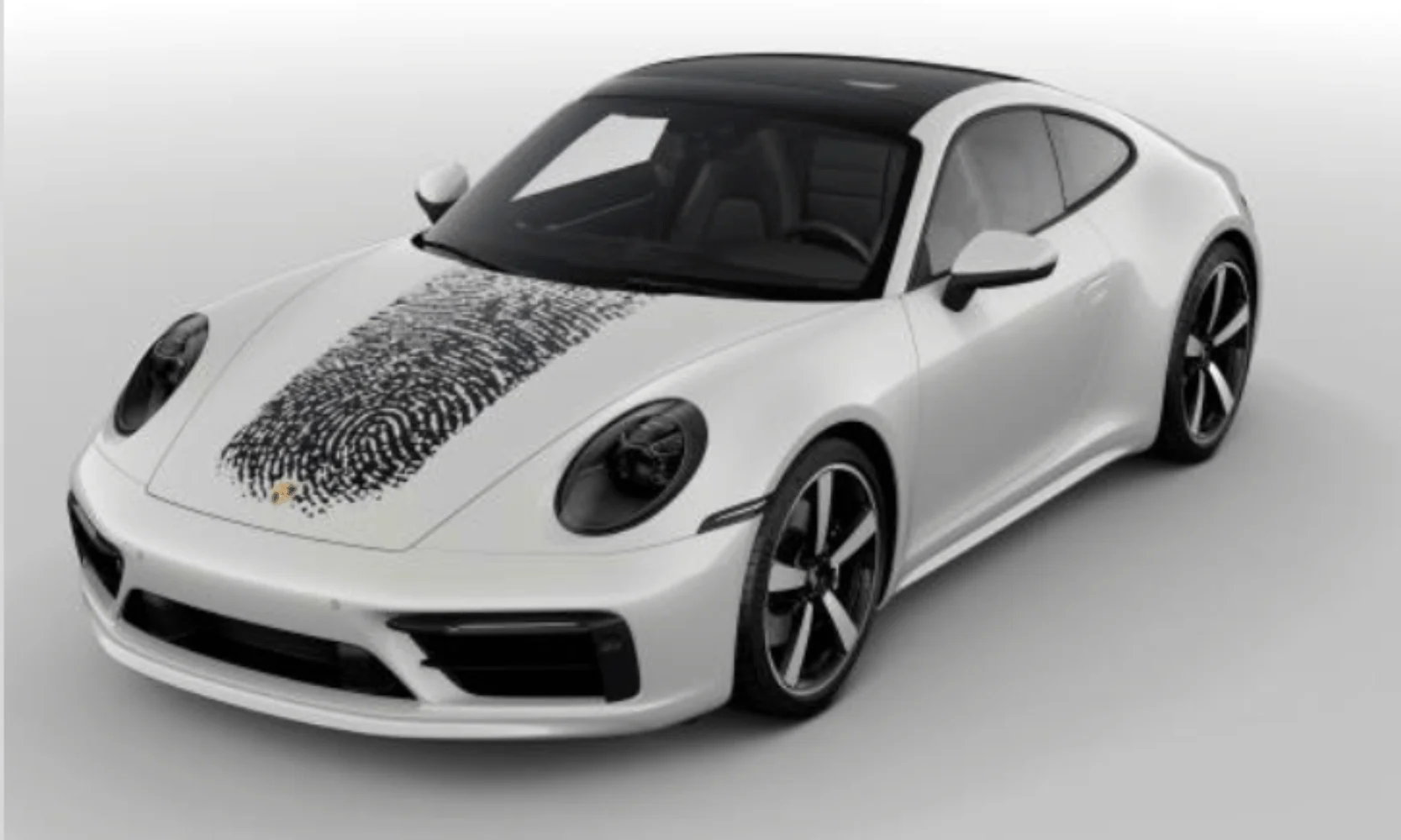

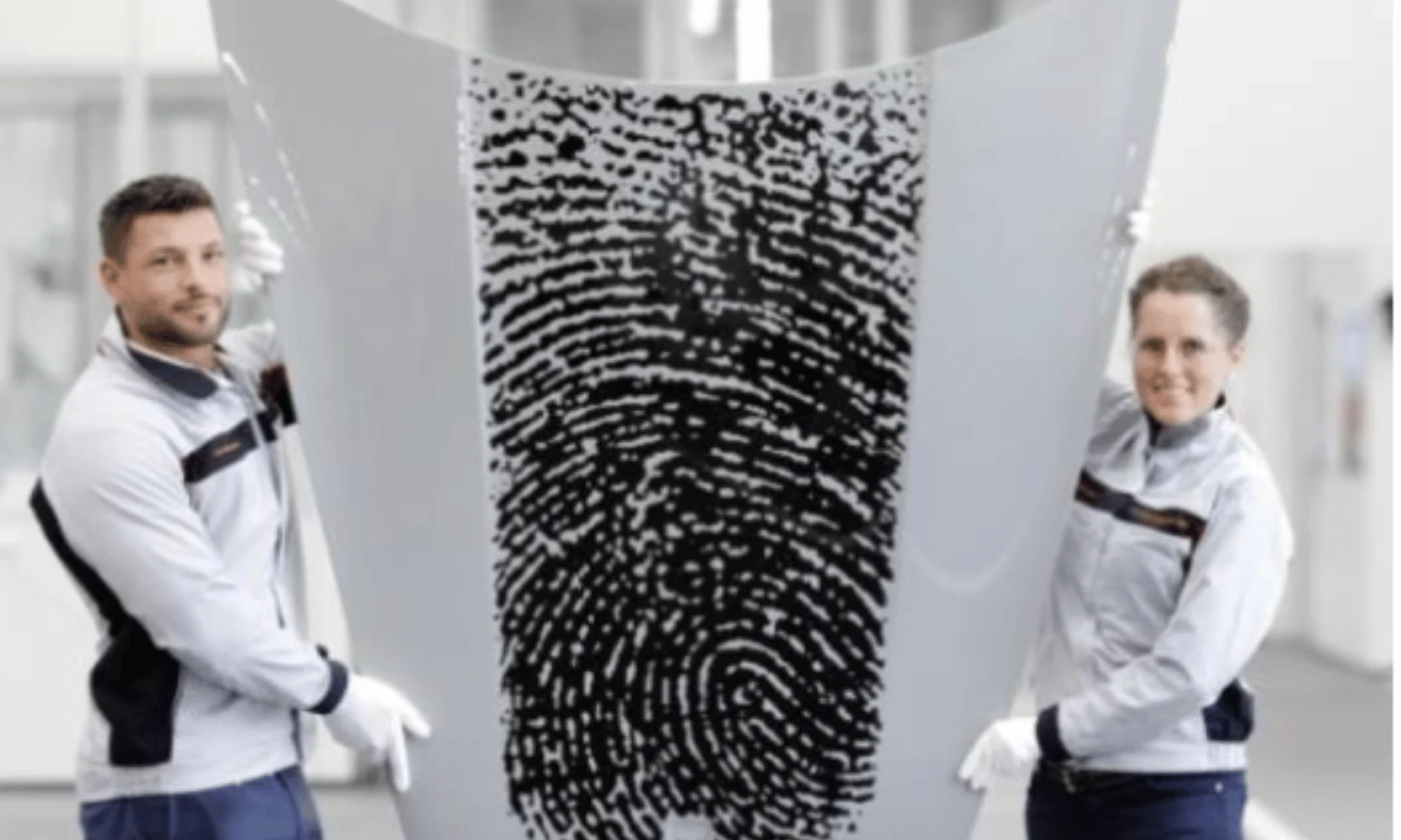

The requirement was to apply a graphic design directly onto a 3D painted surface.
Instead of using film application or manual masking, the marking had to be printed
contact-free directly onto the component.
The goal was to achieve a clean decorative result with high visual quality, sharp edges
and controlled coating output.
Main Challenge
The application required very high precision because the surface was already painted
and visible on the final product.
The main requirements were:
- Direct printing on a three-dimensional component
- No overspray
- No masking process
- Sharp-edged graphic application
- Consistent coating volume
- Controlled paint droplet placement
- High-quality appearance on a smooth painted surface
A highly viscous thixotropic paint was used, which required controlled pressure and
accurate nozzle performance during the application process.
The REA JET Solution

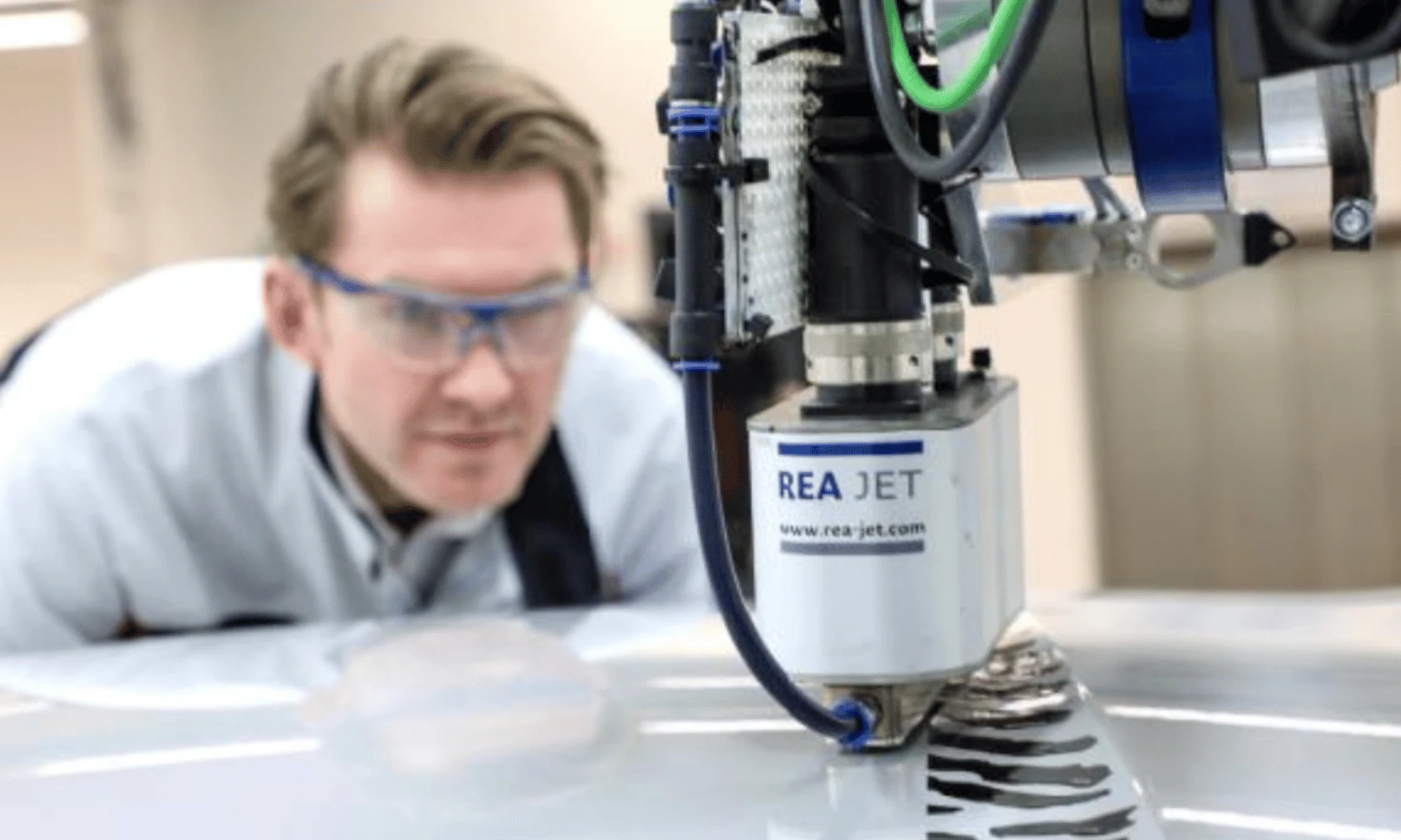

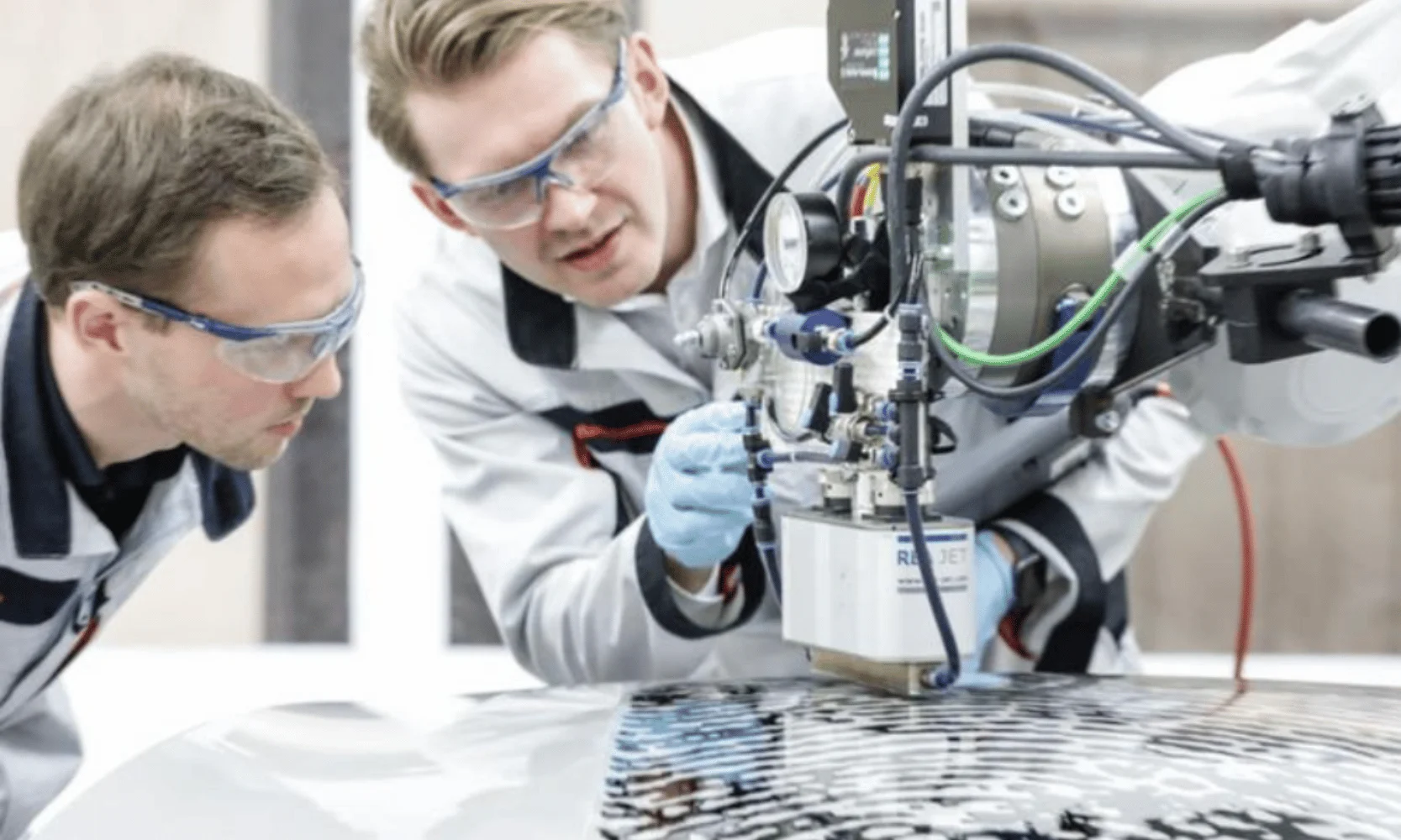

The solution was based on REA JET DOD 2.0, specially adapted for this demanding
application.The system used a modified DOD configuration with RPS DOD 32 nozzles SKP 130 µm,
special tubing, special coating and a flow-optimized ink chamber. The print head was
able to apply the required coating volume at a constant pressure of maximum 1.5 bar.
Each nozzle could be controlled individually, allowing targeted application of every paint
droplet and supporting a sharp, controlled graphic result.
Why DOD 2.0 Was Suitable
REA JET DOD 2.0 is designed for large character industrial coding and marking. It can
print text, data and logos with a print height up to 140 mm per print head, and it can be
configured with 7, 16 or 32-nozzle print heads depending on the application.
For special applications, the system can also process a wide range of fluid media,
making it suitable not only for standard ink marking but also for adapted coating and
graphic marking processes.
Key Benefits
- Contact-free application
- No film required
- No masking required
- No overspray
- Sharp graphic edges
- Controlled droplet application
- Suitable for special fluids and coatings
- Adaptable to customer-specific requirements
- Easy operation through the REA JET TITAN platform
Suitable Industries
This type of solution can be considered for:
- Automotive components
- Painted industrial parts
- Decorative product marking
- Metal and plastic components
- Premium product customization
- Special graphic coding and marking• High-quality surface applications
LCMP Printing Machinery Trading L.L.C is the Official Distributor of REA JET Germany
in the UAE.
LCMP supports manufacturers with application review, system selection, installation
support and after-sales service. For special coding and marking projects, LCMP can
study the product surface, required print result, production conditions and media
requirements to recommend the right REA JET solution.
Conclusion
This application proves that industrial coding and marking can go beyond basic text and
batch codes. With the right configuration, REA JET DOD 2.0 can be adapted for special
graphic marking on complex 3D surfaces, delivering a clean, controlled and high-quality
result.
